FLAGSHIP HARDWARE

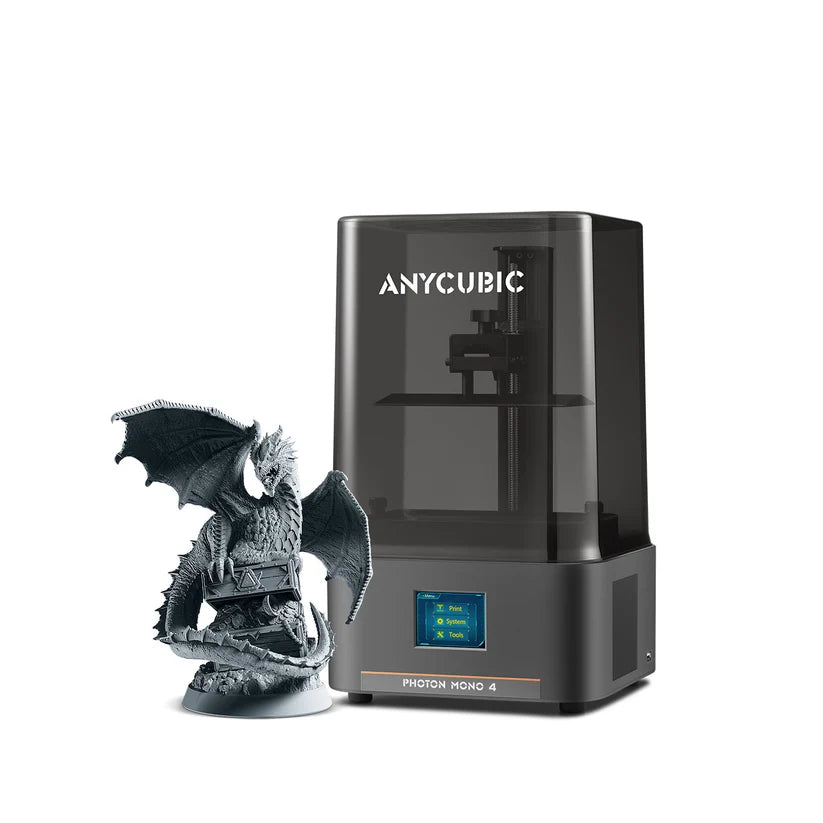

Anycubic Photon Mono 4

$279.99
TECHNICAL SPECIFICATIONS
PRINTING VOLUME
153.4*87*165 mm³ (2.2L)
PRINTING SPEED
Max Speed ≤50mm/h; Standard Resin (0.1mm): ≤50mm/h; High-Speed Resin (0.1mm): ≤70mm/h
LAYER HEIGHT RANGE
0.03-0.15mm
X/Y AXIS RESOLUTION
17 × 17μm
LIGHT SOURCE
Parallel matrix upgrade light source
LIGHT INTENSITY
~3000μW /cm²
MATERIAL COMPATIBILITY
High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
BUILD PLATFORM
Laser-engraved build plate
Z-AXIS
Single linear rail with 30 μm accuracy
RELEASE FILM
FEP film
RESIN VAT
≤0.39L
MACHINE LEVELING
4-point manual leveling
POWER LOSS RESUME
Not supported
POWER SUPPLY
54W
PROTECTION FILM
Replaceable scratch-resistant film
RESIN AUTO-FILL UNIT
Not supported
DYNAMIC TEMPERATURE CONTROL RESIN VAT
Not supported
SLICING SOFTWARE
Photon Workshop
FILE TRANSFER
USB
HINGED COVER
-
OPERATING SCREEN
2.8" Touch-Control
AIR PURIFIER
Optional accessory
LCD SCREEN
7-inch monochrome LCD, 10K resolution
ANYCUBIC APP
Not supported
MULTILINGUAL SUPPORT
EN / CN / DE / FR / IT / ES / RU / JP
MACHINE WEIGHT
4kg
PACKAGE WEIGHT
5.7kg
PRODUCT DIMENSIONS
230*235*391 mm³
PACKAGING DIMENSIONS
480*300*300 mm³

Anycubic Photon Mono 4

Product Description
The Anycubic Photon Mono 4 is an exceptional resin 3D printer that brings ultra-high-definition details to the entry-level market. Designed for beginners and hobbyists who refuse to compromise on quality, this machine delivers stunningly crisp models without the premium price tag. Featuring a high-definition masking screen and an advanced optical system, it ensures your miniatures, jewelry designs, and prototypes come out perfectly every time. With its user-friendly setup and rapid printing capabilities, the Photon Mono 4 is the ideal starting point for anyone looking to dive into high-resolution resin 3D printing.

Key Features
This printer is equipped with cutting-edge features that set a new standard for accessible 3D printing. It boasts an incredible 10K resolution at an entry-level price point, allowing users to capture the finest textures and micro-details with ease. The printing process is enhanced by a 7-inch high-definition screen that provides crisp imaging and superior masking accuracy. Furthermore, the machine utilizes the innovative LighTurbo light sourcing system, which guarantees uniform ultraviolet distribution across the entire build area for consistent and reliable curing. All of this technology works together to achieve an impressive printing speed of up to 70 millimeters per hour, drastically reducing your wait times.

Technical Specifications
The Anycubic Photon Mono 4 utilizes a highly precise optical engine driven by the LighTurbo system and a 7-inch 10K resolution monochrome screen, allowing it to achieve printing speeds of up to 70 millimeters per hour. The comprehensive unboxing experience includes the main Photon Mono 4 unit, a sturdy print platform, and a high-quality resin vat. For a smooth setup and calibration process, the package comes with a detailed manual, a screen protector kit, and leveling paper. Essential tools and accessories such as protective equipment, two resin filters, two scrapers, a hex key set, a USB drive for file management, and a power cord are all provided to ensure you have everything needed to start printing right away.

Warranty & Services
Your purchase of the Anycubic Photon Mono 4 includes free express shipping to ensure fast and secure delivery directly to your home. You can shop with total confidence thanks to a 14-day no reason return policy and a dedicated 30-day after-sales guarantee that provides priority support as you set up your new machine. Additionally, the printer hardware is fully backed by a comprehensive 1-year warranty for 3D printers, offering you long-term peace of mind and protection for your creative investment.
